Vertical LVM mixers

Vertical mixers offer a solution for all known core processes. These mixers are also capable of multiple processes.

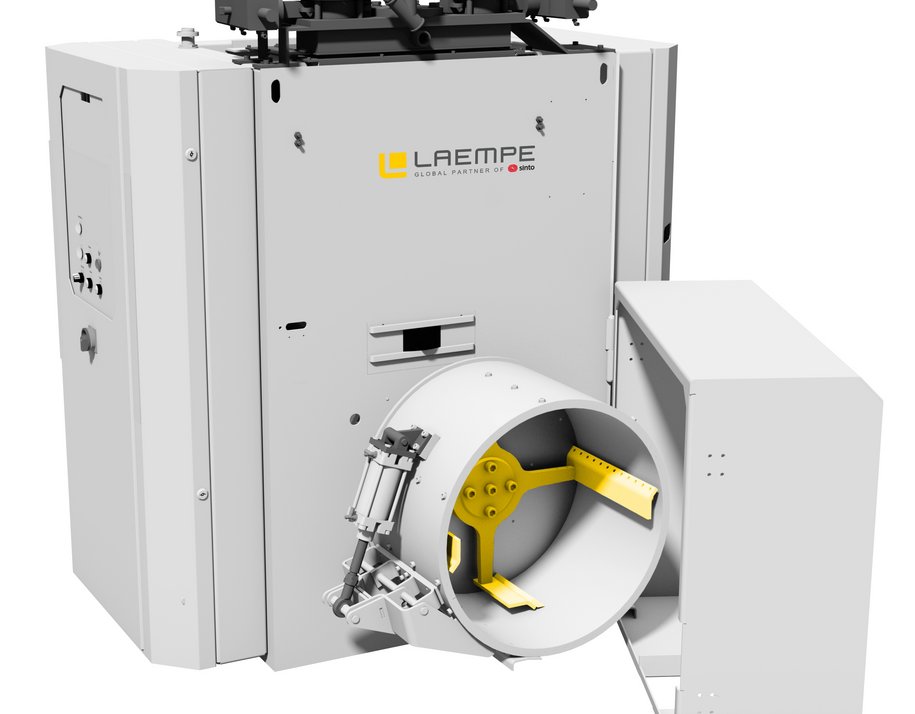

LVM mixers

Features

The LVM mixer series incorporates volumetric metering of sand, binders, and additives. Even with small sand doses and low mixing quantities, this series ensures homogeneous mixing quality and is characterised by short mixing cycle times. With their low installation height, these mixers have minimum space requirements, and provide an all-round, extremely cost-effective solution.

Please contact us

Choose your product specification
LVM mixersLVM
Sand preparationFor all known processes
Mixing capacity (t/h)2 / 5 / 7 / 9
Sand metering volume in litres15 / 36 / 50 / 64
Mixer cycle time35 sec.
Additive connection1 connection/3 connections with scales
Sand discharge positions1
Sand dischargeDischarge flap
Mixing tubeStationary mixer housing
Wearing parts of mixer housingWear-resistant steel
Wearing parts of agitatorWear-resistant armoured steel
Recipe (binder, sand)Can be changed in cycles, manual cleaning if required
Cleaning of mixer housingEasy to clean
Metering methodVolumetric or using scales
sand metering accuracy

± 0,5 kg

± 5g when metering with guided microwave

Binder metering accuracy± 1 g when metering with gear pump
